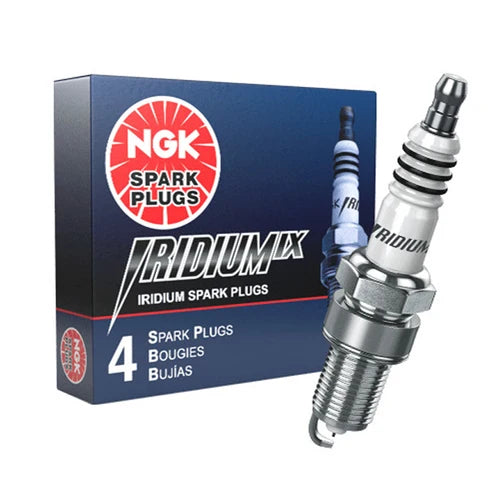

NGK Iridium IX Spark Plug Set ā Toyota 4A-C & 4A-GE
For Toyota 4A-C 1.6L SOHC & AE86 4A-GE / 4A-GEU 1.6L DOHC 16V Engines
Overview
The NGK Iridium IX Spark Plug Set provides an engine-specific ignition upgrade for classic Toyota 4A-C and AE86-era 4A-GE engines. Each configuration includes four Iridium IX spark plugs, providing a complete set for one 4-cylinder engine.
The fine-wire iridium center electrode is designed for consistent ignition, strong starting performance, stable idle, and dependable throttle response. A tapered-cut ground electrode helps improve flame propagation while reducing spark quenching.
Both configurations use an NGK heat range of 5, M14 x 1.25 threads, 19 mm reach, and a nominal 1.1 mm (.044 in.) gap, but the 4A-C and 4A-GE applications use different plug designs. Select the configuration that matches the engine.
Key Features
- Complete set of four NGK Iridium IX spark plugs
- Separate configurations for Toyota 4A-C and AE86 4A-GE / 4A-GEU
- Fine-wire iridium center electrode
- Copper center core for efficient heat transfer
- Tapered-cut nickel ground electrode
- NGK heat range 5
- 1.1 mm (.044 in.) nominal plug gap
- Resistor-type spark plug design
- Gasket-style seat
- Engine-specific hex configuration for proper installation
Vehicle Fitment
Toyota Corolla Sport SR5
- 1984ā1987 Toyota Corolla Sport SR5 AE86 ā Corolla ā 4A-C 1.6L SOHC
Toyota Corolla Sport GT-S
- 1985ā1987 Toyota Corolla Sport GT-S AE86 ā Corolla ā 4A-GE / 4A-GEC 1.6L DOHC 16V
The 4A-GE configuration is also intended for AE86-era bigport / TVIS 4A-GE and 4A-GEU engines using the 1.1 mm spark-plug specification.
Fitment Notes
- Select the spark plug configuration based on the engine installed in the vehicle.
- 4A-C configuration is intended for 4A-C applications using the 1.1 mm (.044 in.) plug gap.
- 4A-GE configuration is intended for AE86-era bigport / TVIS 16-valve engines using the 1.1 mm plug specification.
- Later smallport and other later-generation 4A-GE engines may require a different spark plug specification.
- Check spark plug gap before installation and follow the Toyota service specifications for the engine.
- One set includes enough spark plugs to service one 4-cylinder engine.
Product Specifications
Brand: NGK
Series: Iridium IX
Product Type: Spark Plug Set
Quantity: 4 Spark Plugs
Center Electrode: Fine-Wire Iridium
Center Electrode Core: Copper
Ground Electrode: Nickel, Tapered Cut
Heat Range: NGK 5
Thread Size: M14 x 1.25
Thread Reach: 19 mm / 0.750 in.
Nominal Gap: 1.1 mm / .044 in.
Seat Type: Gasket / Flat
Resistor Type: Yes
Resistance: 5 kĪ©
4A-C Configuration Hex Size: 13/16 in. / 20.8 mm
4A-GE Configuration Hex Size: 5/8 in. / 16 mm
Available Configurations
Toyota 4A-C 1.6L SOHC
- (4) NGK Iridium IX Spark Plugs
- 1.1 mm nominal gap
- 13/16-inch hex
Toyota 4A-GE / 4A-GEU 1.6L DOHC 16V
- (4) NGK Iridium IX Spark Plugs
- 1.1 mm nominal gap
- 5/8-inch hex
- For AE86-era bigport / TVIS applications
