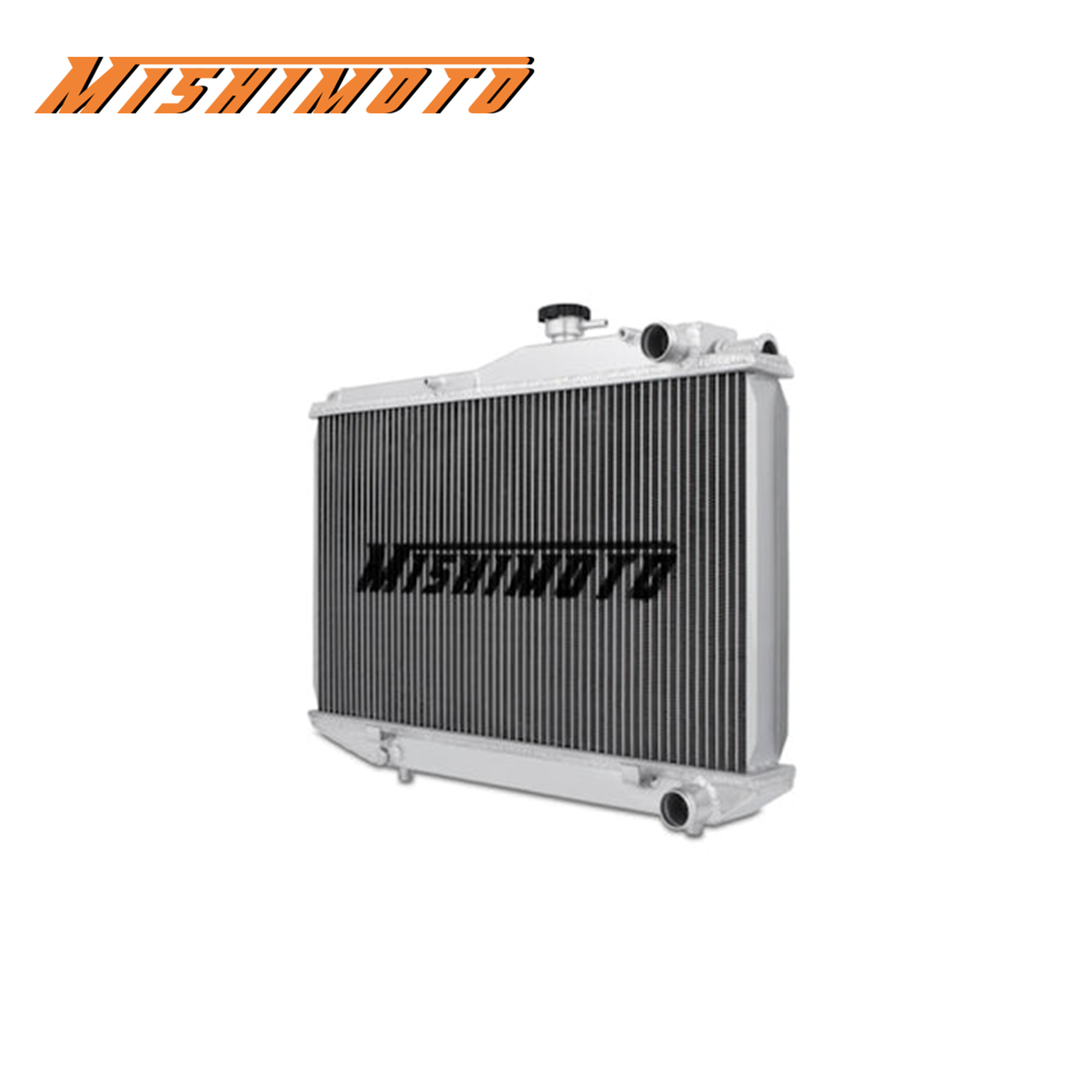

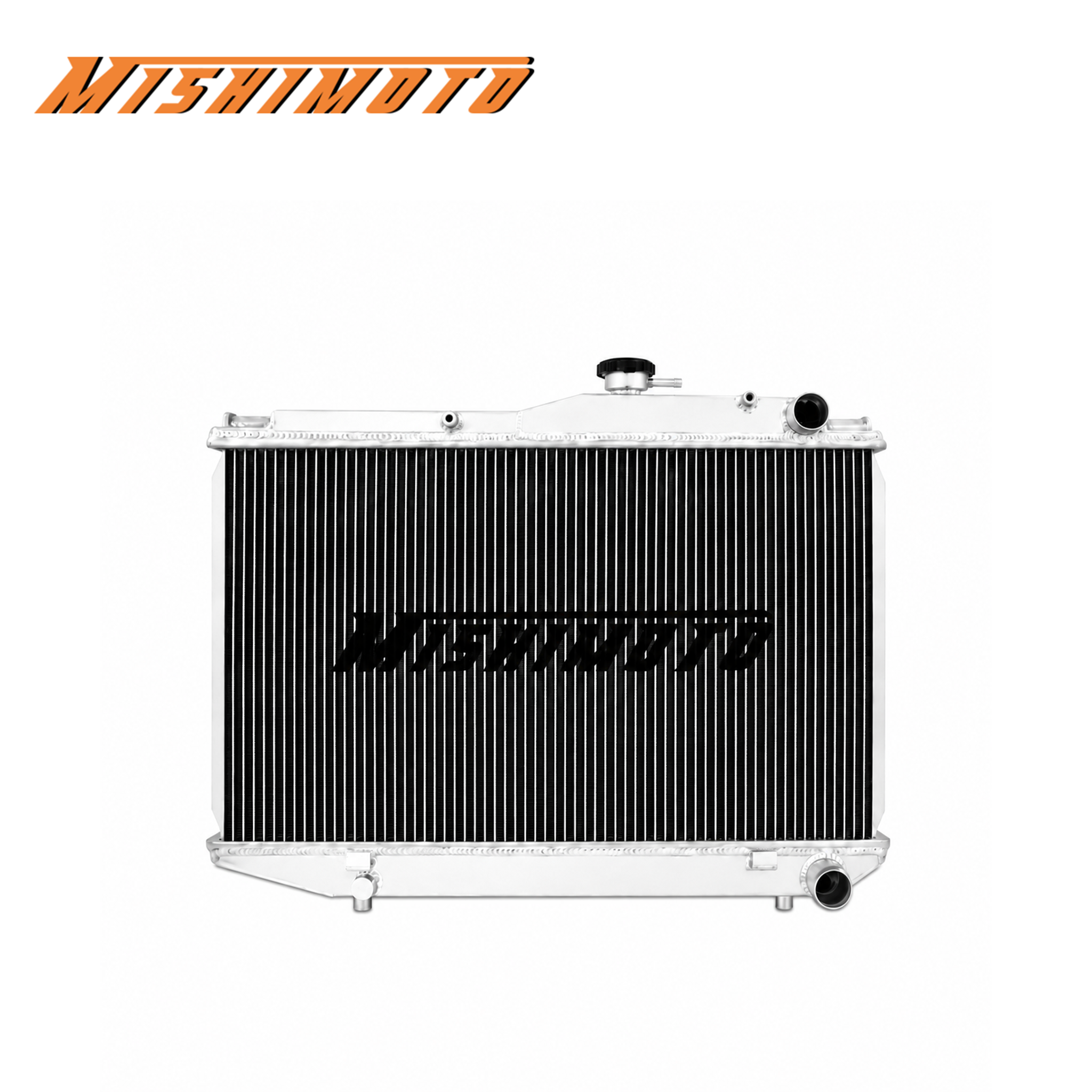

Mishimoto Performance Aluminum Radiator
For 1983–1987 Toyota Corolla Levin / Sprinter Trueno AE86 & 1984–1987 Toyota Corolla Sport SR5 / 1985–1987 Toyota Corolla Sport GT-S AE86
Overview
The Mishimoto Performance Aluminum Radiator is a direct-fit cooling upgrade for the rear-wheel-drive Toyota Corolla AE86. Designed for 1.6L applications, it replaces the factory-style radiator with a full-aluminum construction built around a two-row brazed core for improved heat transfer and dependable coolant-temperature control.
The radiator uses a 2.05-inch-thick aluminum core with TIG-welded construction and a 1.67-gallon coolant capacity. Its vehicle-specific design installs using the factory radiator location without cutting or permanent modification.
A 1.3-bar high-pressure radiator cap and magnetic drain plug are included, providing a complete performance radiator package for restored street cars, modified AE86 builds, drifting, autocross, and track-oriented applications.
Key Features
- Direct-fit performance radiator for the Toyota Corolla AE86
- Full aluminum construction with durable TIG-welded components
- Two-row brazed aluminum core
- 2.05-inch core thickness
- 1.67-gallon coolant capacity
- 1.25-inch radiator inlet and outlet
- Includes 1.3-bar high-pressure radiator cap
- Magnetic drain plug helps capture metallic debris in the cooling system
- Installs without cutting or permanent vehicle modification
- Mishimoto Lifetime Warranty
Cooling Design
The two-row aluminum core provides a larger, durable heat-transfer surface compared with a conventional factory-style radiator construction. Full aluminum tanks and TIG-welded joints make the assembly well suited to performance-oriented AE86 cooling systems.
The included 1.3-bar radiator cap allows the cooling system to operate at increased pressure, helping raise the coolant's boiling point. A magnetic drain plug is also included to help collect small metallic particles circulating through the cooling system.
Vehicle Fitment
Toyota Corolla Levin
- 1983–1987 Toyota Corolla Levin – AE86 – 1.6L 4A-GE
Toyota Sprinter Trueno
- 1983–1987 Toyota Sprinter Trueno – AE86 – 1.6L 4A-GE
Toyota Corolla Sport SR5
- 1984–1987 Toyota Corolla Sport SR5 – AE86 – 1.6L 4A-C
Toyota Corolla Sport GT-S
- 1985–1987 Toyota Corolla Sport GT-S – AE86 – 1.6L 4A-GE
Fitment Notes
- Designed for manual-transmission vehicles
- Automatic-transmission applications require a separate universal transmission cooler
- Chassis application: AE86
- Direct OEM-style fit with no cutting or modification required
- Designed for 1.6L AE86 cooling-system applications
Product Specifications
Brand: Mishimoto
Product Type: Performance Radiator
Application: Toyota Corolla AE86
Material: Aluminum
Core Design: 2-Row Brazed Aluminum
Core Length: 22.16 in
Core Height: 12.79 in
Core Thickness: 2.05 in
Overall Length: 18.3 in
Overall Height: 23.15 in
Overall Width: 3.81 in
Coolant Capacity: 1.67 gal
Inlet Diameter: 1.25 in
Outlet Diameter: 1.25 in
Drain Plug Thread: M12 x 1.5
Radiator Cap Pressure: 1.3 bar
Transmission Application: Manual
Warranty: Mishimoto Lifetime Warranty
What's Included
- (1) Mishimoto Performance Aluminum Radiator
- (1) 1.3-Bar High-Pressure Radiator Cap
- (1) Magnetic Drain Plug
