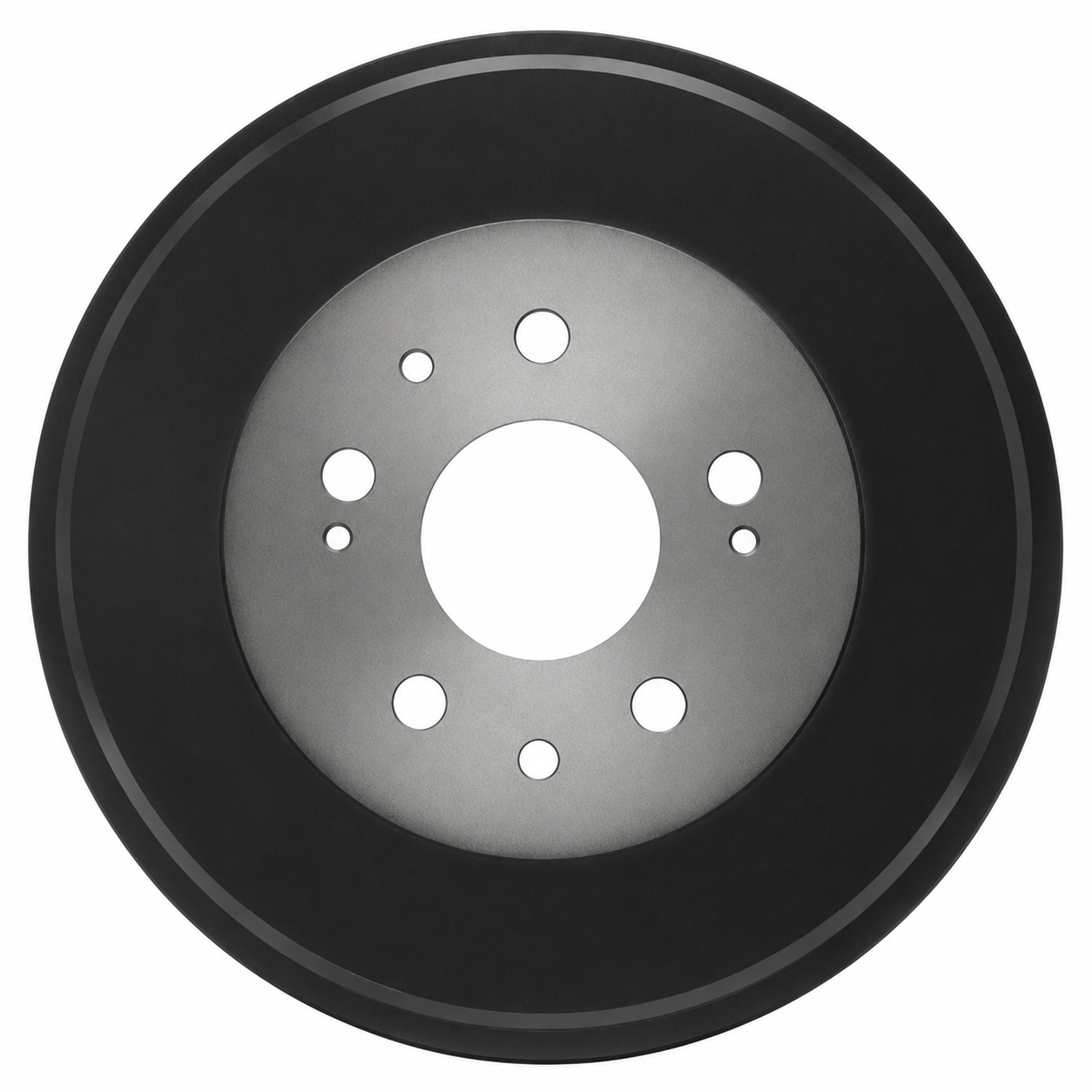

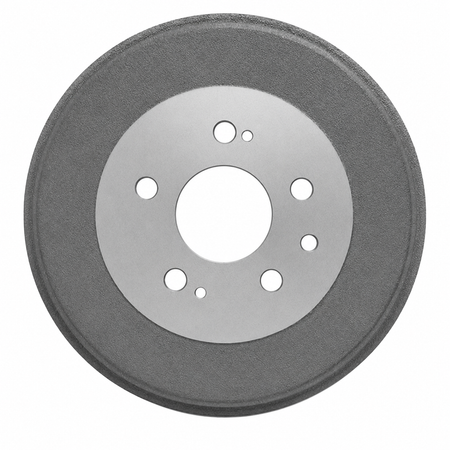

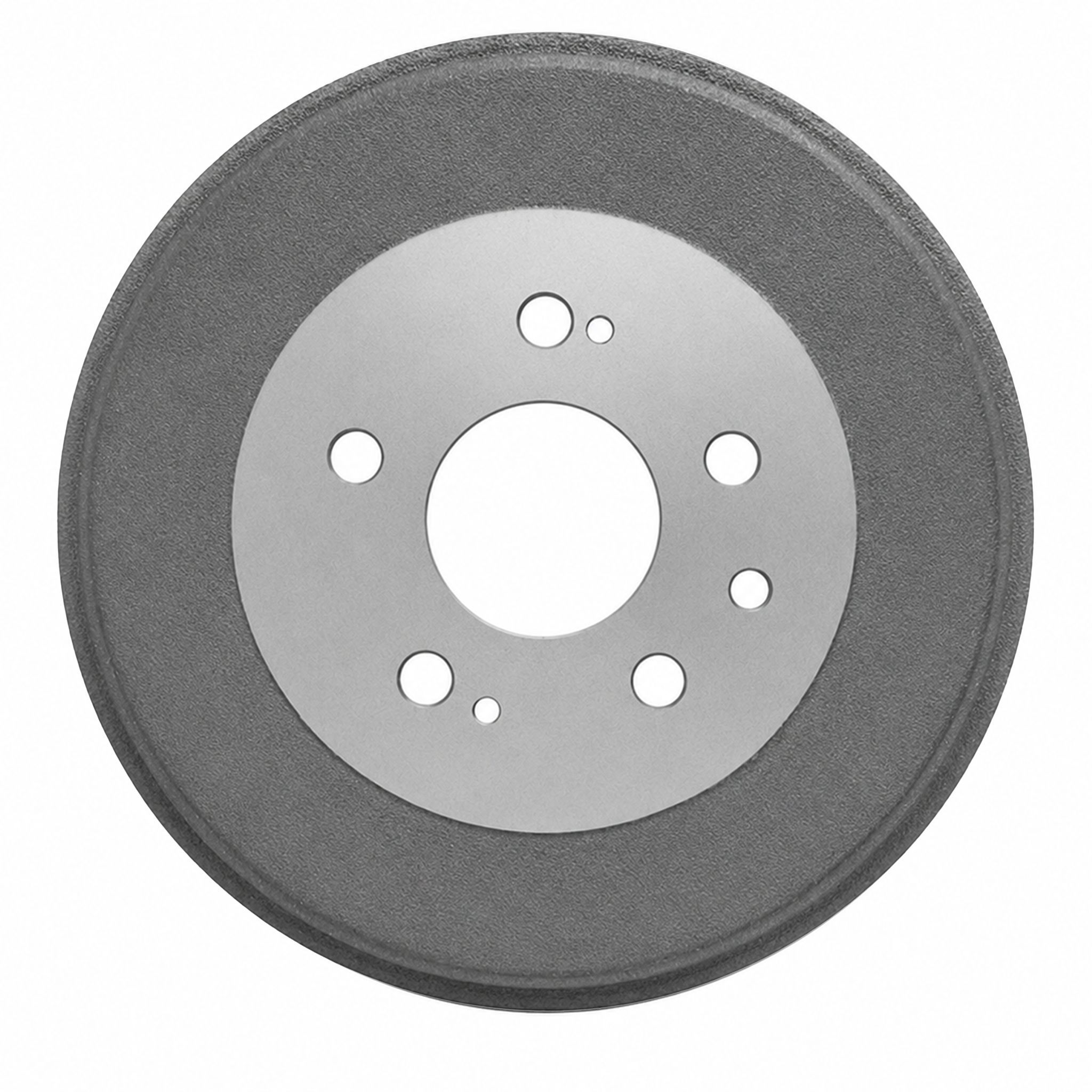

DFC OE Replacement Standard 1/2-Ton & 3/4-Ton Rear Brake Drum
For 1979–1995 Toyota Pickup RWD / 2WD – Standard 5-Lug Applications
Overview
The Dynamic Friction Company (DFC) True Balanced Rear Brake Drum is a direct-fit replacement for compatible 1979–1995 Toyota Pickup RWD / 2WD rear drum brake applications, including standard 1/2-ton and supported 3/4-ton configurations.
This listing combines two application-specific rear brake drums based on model year. Select either 1979–1983 or 1984–1995 to receive the correct drum for the corresponding Toyota Pickup rear brake configuration. The earlier rear drums are for 1979–1983 RWD 1/2-ton and 3/4-ton applications, while the later drum covers compatible RWD Toyota Pickup applications from 1984 through 1995.
Both versions use a 254 mm braking diameter, 5-lug design, 67 mm center bore, and 114.3 mm bolt circle, but their outside diameter and overall height differ. DFC True Balanced drums are precision machined and balanced, then finished with a black high-temperature coating for corrosion protection.
Key Features
- Direct-fit rear brake drum for compatible Toyota Pickup RWD / 2WD
- Two application-specific year ranges available
- 254 mm braking diameter
- 5-lug, 114.3 mm bolt circle
- 67 mm center hole diameter
- Floating-mount design
- Precision cut and mill balanced
- Machined for OE-style form, fit, and function
- Black high-temperature corrosion-resistant coating
- Available individually or as a pair
DFC rear brake drums are machined to tight tolerances, electronically balanced, inspected for critical dimensions, and coated with high-temperature black paint for corrosion protection.
Rear Drum Specifications by Year
1979–1983
- Braking Diameter: 254 mm
- Maximum Drum Diameter: 256 mm
- Outside Diameter: 298 mm
- Overall Height: 70.5 mm
- Center Hole Diameter: 67 mm
- Lug / Mounting Hole Quantity: 5
- Mounting Hole Diameter: 14.5 mm
- Drum Bolt Circle Diameter: 114.3 mm
- Mount Type: Floating
1984–1995
- Braking Diameter: 254 mm
- Maximum Drum Diameter: approximately 256 mm
- Outside Diameter: 305.5 mm
- Overall Height: 72 mm
- Center Hole Diameter: 67 mm
- Lug / Mounting Hole Quantity: 5
- Mounting Hole Diameter: 14.5 mm
- Drum Bolt Circle Diameter: 114.3 mm
- Mount Type: Floating
Vehicle Fitment
Toyota Pickup
- 1979–1983 Toyota Pickup – 1st Gen – RWD / 2WD – 1/2-Ton – Rear
- 1979–1983 Toyota Pickup – 1st Gen – RWD / 2WD – Supported 3/4-Ton – Rear
- 1984–1988 Toyota Pickup – 2nd Gen – RWD / 2WD – Standard 5-Lug Applications – Rear
- 1989–1995 Toyota Pickup – 3rd Gen – RWD / 2WD – Standard 5-Lug Applications – Rear
The earlier application is specifically cataloged for 1979–1983 RWD 1/2-ton and 3/4-ton trucks. The later drum is cataloged for standard RWD Toyota Pickup applications from 1984 through 1995.
Fitment Notes
- Rear application only
- RWD / 2WD applications only
- 5-lug rear brake drum
- Select the correct Year Range before ordering
- 1979–1983 and 1984–1995 use different application-specific drums
- Does not replace the 6-lug 4WD rear brake drum
- Does not replace heavy-duty 1-ton-specific rear brake drums
- Available individually or as a pair
- Select a pair when replacing both rear brake drums
- Verify the existing rear brake and wheel configuration before ordering
Product Specifications
Brand: Dynamic Friction Company (DFC)
Series: True Balanced
Product Type: Brake Drum
Position: Rear
Recommended Use: OE Replacement
Material: Cast Iron
Finish: Black High-Temperature Coating
Braking Diameter: 254 mm
Lug / Mounting Hole Quantity: 5
Center Hole Diameter: 67 mm
Drum Bolt Circle Diameter: 114.3 mm
Mount Type: Floating
Fit Type: Vehicle-Specific / Direct Fit
Drivetrain: RWD / 2WD
Dimensions: Application-Specific by Year Range
Available Configurations
1979–1983
- For standard 1979–1983 Toyota Pickup RWD / 2WD rear brake applications
- 1st Gen Toyota Pickup
- 298 mm outside drum diameter
1984–1995
- For standard 1984–1995 Toyota Pickup RWD / 2WD rear brake applications
- Covers 2nd Gen and 3rd Gen Toyota Pickup applications
- 305.5 mm outside drum diameter
Single Rear Brake Drum
- (1) Application-correct DFC True Balanced Rear Brake Drum

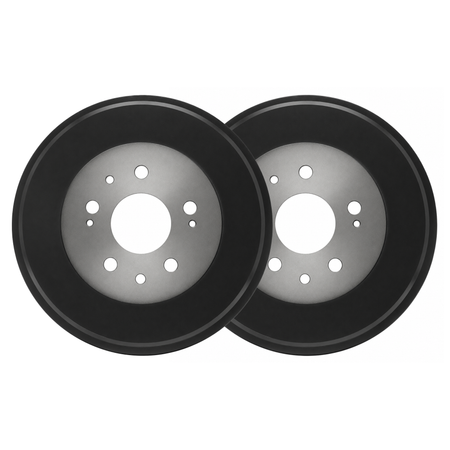

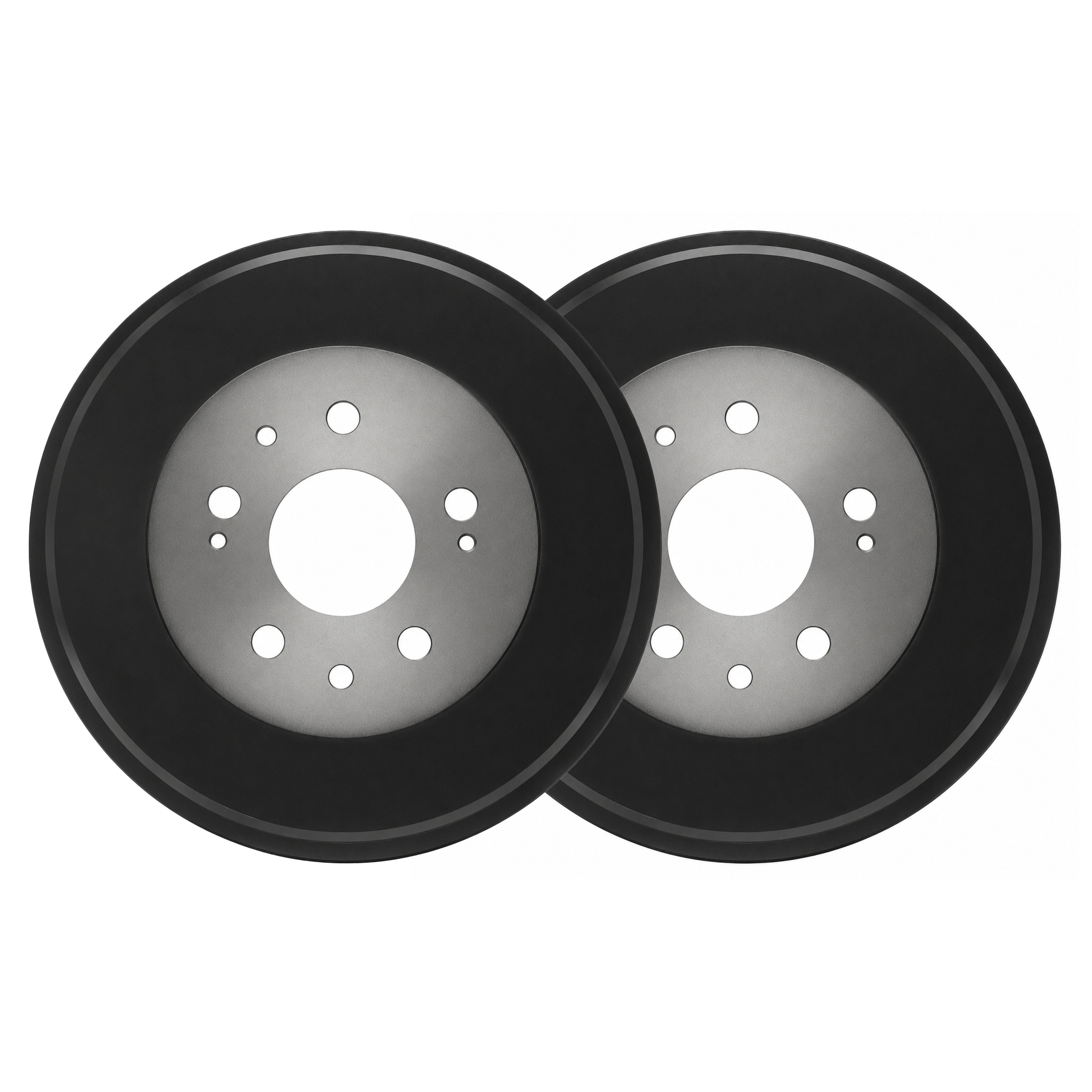

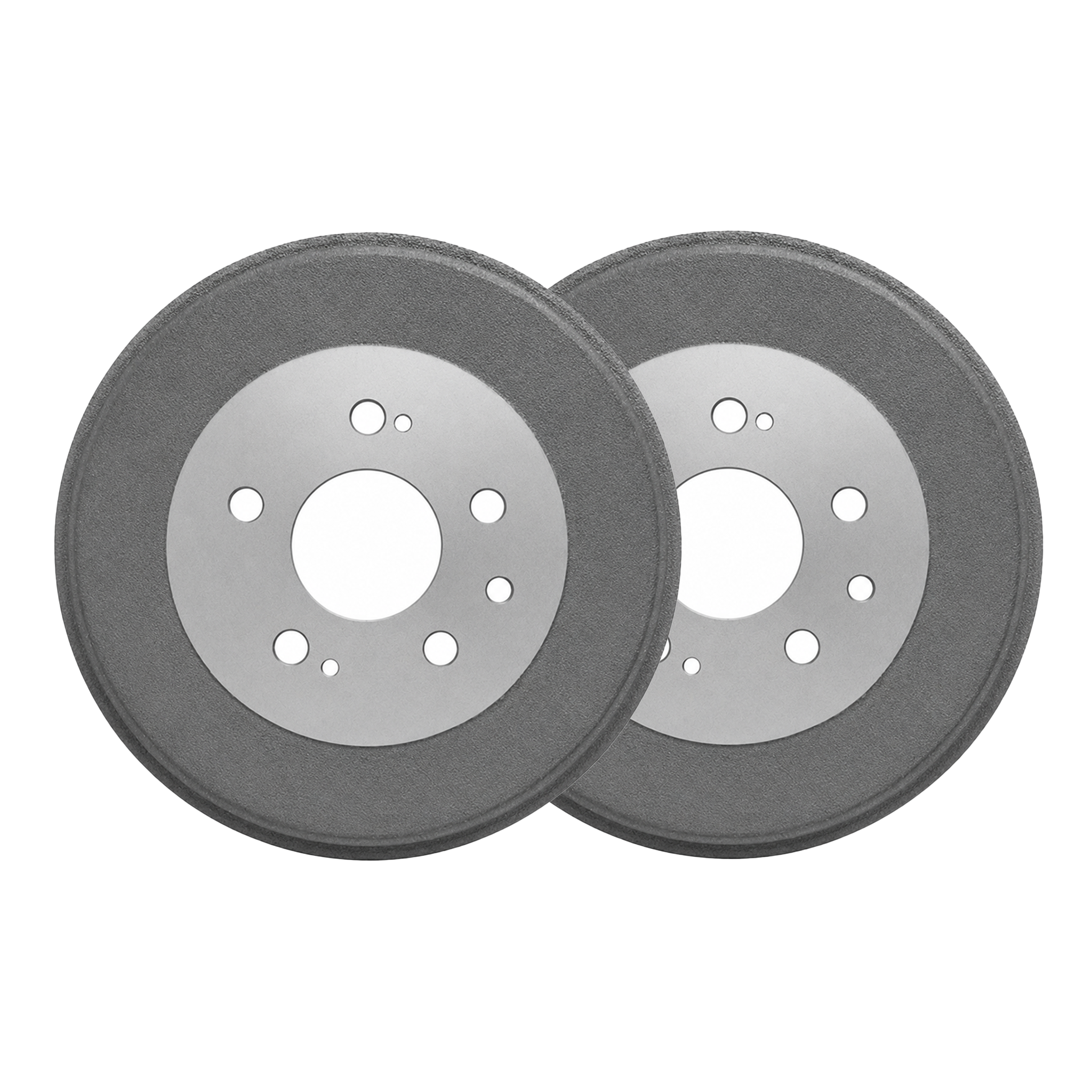

Pair of Rear Brake Drums
- (2) Matching application-correct DFC True Balanced Rear Brake Drums
- Provides both drums needed to replace the driver- and passenger-side rear brake drums
