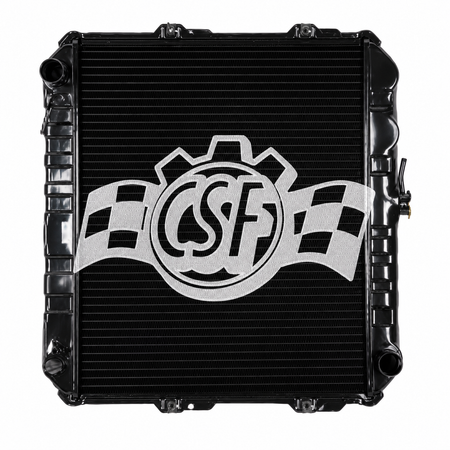

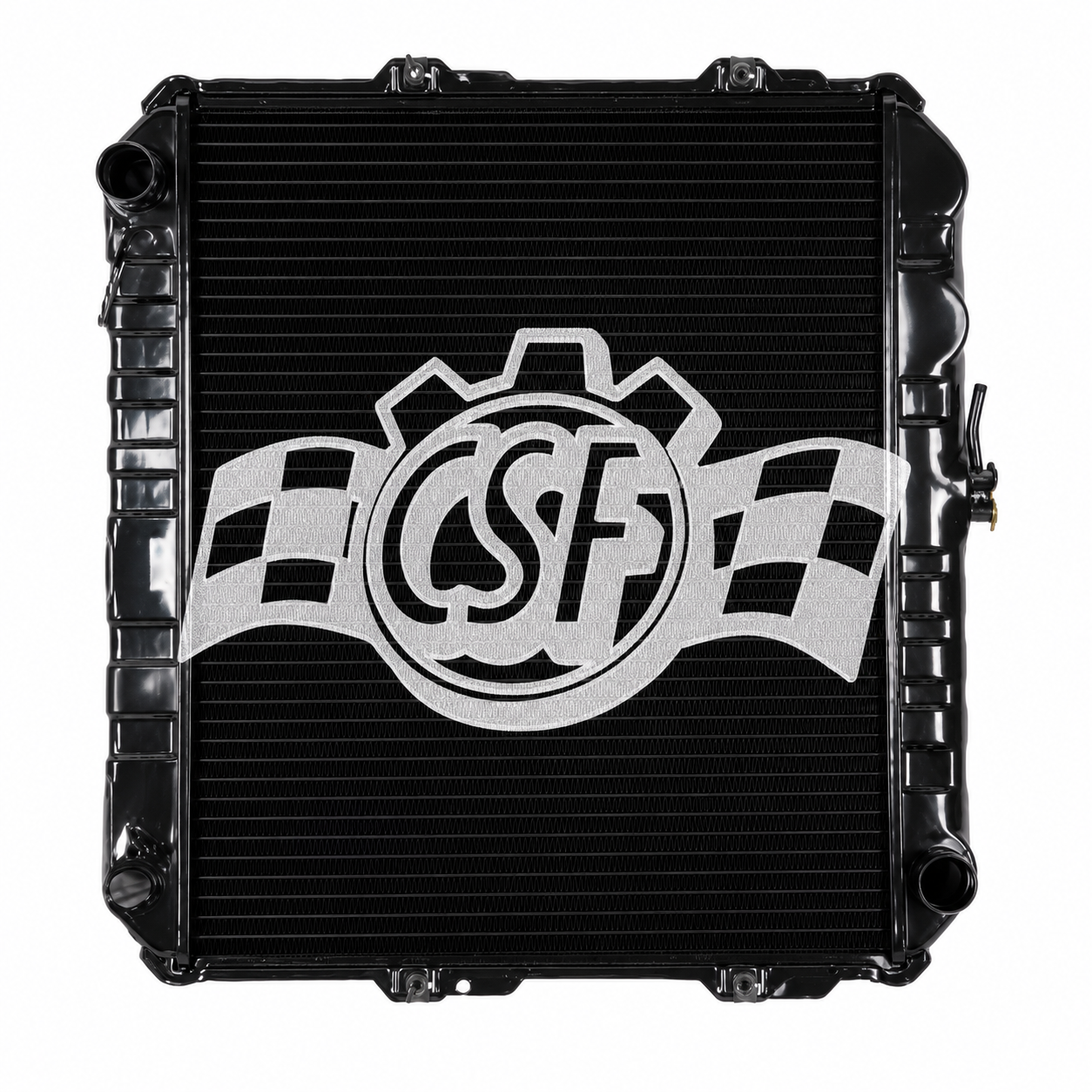

CSF 3-Row All-Metal Radiator
For 1984–1988 2nd Gen Toyota Pickup 4WD
Overview
The CSF 3-Row All-Metal Radiator is a heavy-duty cooling system replacement for 1984–1988 2nd Gen Toyota Pickup 4WD models. Vehicle-specific configurations cover the 2.4L 22R, 22RE, and 22R-TE 4-cylinder engines, along with the 1988 3.0L 3VZ-E V6.
Both configurations use a three-row copper core with brass tanks, providing durable all-metal construction and increased cooling capacity compared with conventional light-duty replacement radiators. The copper/brass design is also serviceable, making it well suited to restoration builds, daily-driven trucks, off-road use, and vehicles operating under increased cooling demand.
Both automatic and manual transmission applications are supported. Automatic models use the radiator's integrated transmission cooler, while manual-transmission trucks leave the cooler connections unused.
Key Features
- 3-row all-metal radiator construction
- Copper core with brass tanks
- Vehicle-specific design for Toyota Pickup 4WD applications
- Separate 4-cylinder and V6 radiator configurations
- Downflow radiator design
- Integrated automatic transmission cooler
- Fits automatic and manual transmission models
- Reinforced inlet and outlet connections
- Increased cooling capacity from the 3-row core
- Serviceable copper/brass construction
Material & Construction
The radiator uses traditional copper-and-brass construction with a three-row core and durable brass tanks.
The 4-cylinder and V6 applications use different radiator dimensions to match their respective factory cooling-system layouts. Both retain vehicle-specific mounting and hose locations for a direct-fit installation.
Vehicle Fitment
Toyota Pickup
- 1984–1988 Toyota Pickup – 2nd Gen – 4WD – 2.4L 22R / 22RE – Automatic & Manual
- 1986–1987 Toyota Pickup – 2nd Gen – 4WD – 2.4L Turbo 22R-TE – Automatic & Manual
- 1988 Toyota Pickup – 2nd Gen – 4WD – 3.0L 3VZ-E V6 – Automatic & Manual
Fitment Notes
- 4WD models only
- Select the configuration that matches your engine
- 22R and 22RE applications cover the naturally aspirated 2.4L 4-cylinder
- 22R-TE turbo applications are limited to 1986–1987
- 3.0L 3VZ-E V6 configuration applies to 1988 models
- Automatic models use the integrated transmission cooler
- Manual-transmission models leave the transmission-cooler connections unused
- Does not fit 2WD applications
Product Specifications
Brand: CSF
Product Type: Engine Radiator
Construction: All-Metal
Core Material: Copper
Tank Material: Brass
Core Design: 3-Row
Radiator Design: Downflow
Transmission Cooler: Integrated
Transmission: Automatic & Manual
Drivetrain: 4WD
Fit: Vehicle-Specific / Direct Fit
Available Configurations
1984–1988 | 2.4L 22R / 22RE / 22R-TE
- 3-row copper/brass radiator
- Covers naturally aspirated 22R and 22RE applications
- Covers 22R-TE turbo applications for 1986–1987 models

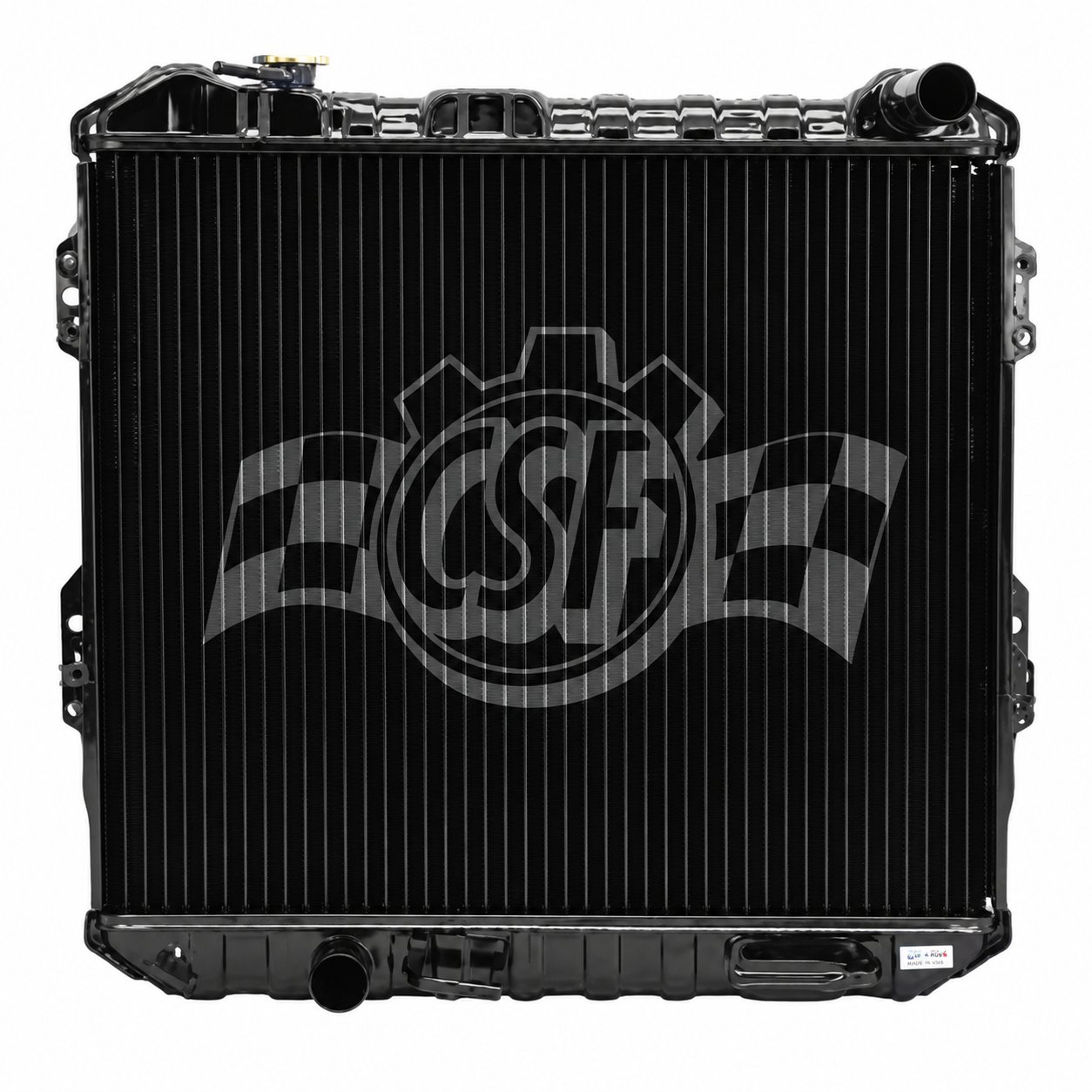

1988 | 3.0L 3VZ-E V6
- 3-row copper/brass radiator
- Designed for 1988 V6 4WD applications
